Specification of LARKIN Solid State Relay 3P 4-32VDC 24-480VAC LFTSSR - 60DAJJ

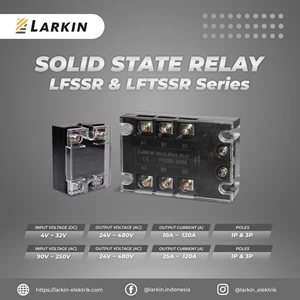

LARKIN Solid State Relay 3P 4-32VDC 24-480VAC LFTSSR - 60DAJJ
Type : LFTSSR - 60DAJJ
Brand: LARKIN
DC to AC, 1-Phase & 3-Phase
Input Voltage (DC) 4V~32V
Output Voltage (AC) 24V~480V
Output Current (A) 10A ~120A
AC to AC, 1-Phase & 3-Phase
Input Voltage (AC) 90V~250V
Output Voltage (AC) 24V~480V
Output Current (A) 25A ~120A
- Has four terminals, 2 input terminals and 2 output terminals.
- The input voltage can be either AC or DC voltage.
- Between the output and input is isolated by an optical system.
- Output using thyristor family, SCR for DC load and TRIAC for AC load.
- Switching ON, which is often called 'firing', SSR can only occur when the voltage is -
goes into the output at a very low level close to zero volts.
- Output is AC voltage (50 Hz or 60 Hz).
